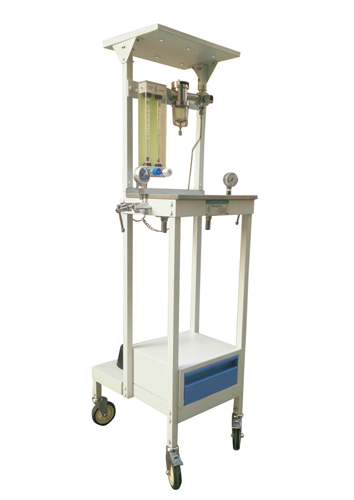

Anaesthesia Portable Trolley (Portable)

Structure

Square tubular electro statically Powder coated steel sections.

Table Top

Stainless Steel.

Drawer

Extra large one storage Drawer.

Cylinder Yokes

Pin-Indexed gas specific dual Oxygen & Nitrous Oxide Yokes with 50 mm gauges

Regulators

For higher efficiency and reliability two each for oxygen and Nitrous Oxide.

Oxygen failure warning device

Pneumatic device which activates audible alarm when Oxygen supply Pressure   falls 215 kpa.

Rotameters

Antisatatic colour coaded non inter changeable Long rotating bobbin flow meters accurately calibrated.
Oxygen  -      100 ml / min. to 10 Litres/min.
Nitrous Oxide-100 ml / min to12 Litres/min.
Oxygen flow control is on left side of flowmeter as it is Preferred Gas.

Vaporisers

One Halothane vaporiser supplied as standard.

Non-return cum Pressure relief Valve

To minimises risk of backflow of gases, non return value provided

Emergency Oxygen

Oxygen flush button with Out-let at table level 4.22 kPa x 100

Accessories

Circles   absorber can be securedly Mounted on the left side of the main frame.

Breathing Attachment

Standard magill's circuit.

Mobility

Antisatatic Large diameter caster wheels with ball bearings. Front Casters   have brakes
