ANESTHESIA MAJOR - PC (MAJOR - PC)

Get a Price/Quote

ANESTHESIA MAJOR - PC (MAJOR - PC) Specification

Shape
Rectangular

Automation Grade
Semi-Automatic

Properties
Modular, Mobile, With Monitor Shelf

Use
Administering Anesthesia

Accuracy
1%

Power
Electric

Height
1370 mm

Humidity Range
20%-90% RH

Temperature Range
5C40C

Weight
120 kg approx

Treatment Type
Inhalational Anesthesia Administration

Application
Operation Theatre

Phase
Single

Color Code
White & Blue

Product Type
Anesthesia Workstation

Material
CRCA Sheet

Display Type
LED

Suitable For
Adult and Pediatric

Storage Capacity
Integrated Drawer Unit

Function
Delivery of Mixed Medical Gases

Dimension (L*W*H)
970 x 590 x 1370 mm

Frequency
50 Hz

Display
Digital

Voltage
220-240 V

Power Source
230 V AC

Alarm
Low Pressure Audible Alarm

Vaporizer Mount Type
Selectatec Compatible

Patient Circuit
Expandable with Reservoir Bag

Castor Type
Heavy Duty, Lockable

Number of Drawers
Three

Nitrous Oxide Flow Meter Range
0.1 to 10 LPM

Oxygen Flow Meter Range
0.1 to 10 LPM

Safety Feature
Hypoxic Guard, Anti-Reverse Flow

Backup Power
Built-in Battery Backup (optional)

Breathing System
Closed and Semi-Closed

About ANESTHESIA MAJOR - PC (MAJOR - PC)

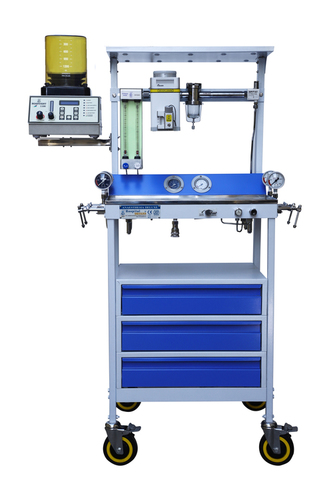

ANESTHESIA MAJOR MACHINE

The Anesthesia Major meets with the safety Features recommended by the international standards organization.
Long Oxygen & Nitrous Oxide flow meter tubes accurately calibrated. Oxygen flow is received downstream of other Gas, being the preferred Gas.
Incorporate one vaporizer Halothane.
Two pairs of Yokes with Regulators & Gauges Colors coded for Oxygen and Nitrous Oxide.
To minimize backflow of Gases non-return cum pressure relief valve is provided
Emergency Oxygen flush button cum outlet at table level.

Features

Structure	Square tubular electro statically Powder coated steel sections.
Table Top	Stainless Steel.
Drawer	Extra large one storage Drawer.
Cylinder Yokes	Pin-Indexed gas specific dual Oxygen & Nitrous Oxide Yokes.
Regulators	For higher efficiency and reliability two each for oxygen and Nitrous Oxide.
Nitrous cut-off	Nitrous cut-off system is provided .
Oxygen failure warning device	Pneumatic device which activates audible alarm when Oxygen supply Pressure falls 215 kpa.
Rotameters	Antisatatic colour coaded non inter changeable Long rotating bobbin flow meters accurately calibrated. Oxygen - 100 ml / min. to 10 Litres/min. Nitrous Oxide-100 ml / min to12 Litres/min. Oxygen flow control is on left side of flowmeter as it is Preferred Gas.
Vaporisers	One Halothane vaporiser supplied as standard.
Non-return cum Pressure relief Valve	To minimises risk of backflow of gases, non return value provided
Emergency Oxygen	Oxygen flush button with Out-let at table level 4.22 kPa x 100
Accessories	One Schrader type self sealing oxygen out-let for ventilator/flowmeter can be used as pipe line inlet Extended rear platform for two 10 liter capacity cylinder,Circle absorber can be securedly Mounted on the left side of the main frame.
Breathing Attachment	Standard magill's circuit.
Mobility	Antisatatic Large diameter caster wheels with ball bearings. Front Casters have brakes.
Change over	lever system provided for change over from open to close circuit and vise versa.

Modular Design and Enhanced Mobility

The ANESTHESIA MAJOR - PC features a modular structure with a monitor shelf and three spacious drawers, offering excellent storage and organization. Its heavy-duty, lockable castors facilitate easy movement within the operating theatre, supporting greater flexibility during procedures. The unit is fabricated from sturdy CRCA sheet, finished in a white and blue color code.

Precision, Safety, and Advanced Features

Equipped with digital LED display and accurate flow meters for both oxygen and nitrous oxide, this device ensures precise delivery of medical gases. Safety is prioritized through features like a hypoxic guard, low pressure audible alarm, and anti-reverse flow. The expandable patient circuit and compatibility with Selectatec vaporizers enhance usability for various case requirements.

FAQs of ANESTHESIA MAJOR - PC (MAJOR - PC):

Q: How does the ANESTHESIA MAJOR - PC administer inhalational anesthesia?

A: The ANESTHESIA MAJOR - PC delivers mixed medical gases, including oxygen and nitrous oxide, through its patient circuit. The closed or semi-closed breathing system and Selectatec compatible vaporizer enable accurate and controlled administration of inhalational agents suitable for both adult and pediatric patients.

Q: What safety features are included in the ANESTHESIA MAJOR - PC?

A: The machine integrates a hypoxic guard to prevent dangerous gas mixtures, an anti-reverse flow system to ensure correct operation, and a low pressure audible alarm for system alerts. These features work collectively to safeguard patients during anesthesia delivery.

Q: When is the built-in battery backup required for this anesthesia machine?

A: The optional built-in battery backup is essential during power fluctuations or outages within the operation theatre, ensuring uninterrupted anesthesia delivery and patient safety until stable power is restored.

Q: Where can the ANESTHESIA MAJOR - PC be utilized effectively?

A: Designed primarily for use in operation theatres, this modular, mobile anesthesia unit can also support various medical institutions requiring both adult and pediatric anesthesia administration, such as hospitals and surgical centers.

Q: What is the process for setting up and using the breathing system of this machine?

A: Users install the expandable patient circuit and reservoir bag, select the appropriate vaporizer, and adjust flow meters via the digital LED display. The closed or semi-closed breathing system is then tailored to clinical requirements, offering precise gas delivery and effective anesthesia management.

Q: Which patients is the ANESTHESIA MAJOR - PC suitable for?

A: This anesthesia machine is designed for a broad range of patients, accommodating both adults and children. The adjustable circuit and precise control of medical gas flow ensure safe and effective anesthesia delivery across age groups.

Q: What benefits does the ANESTHESIA MAJOR - PC offer for healthcare providers?

A: Healthcare providers gain from its modular design, ease of mobility, robust safety systems, high accuracy, and integrated storage. These features streamline the anesthesia process, promote safety, and enhance workflow efficiency in demanding medical environments.
