Horizontal High Speed Sterilizers

Get a Price/Quote

MOQ : 1 Piece

Horizontal High Speed Sterilizers Specification

Type
High Speed Horizontal Sterilizer

Chamber Size
1100 x 700 x 900 mm

Chamber Thickness
8 mm

Outer Size
1500 x 900 x 1200 mm

Compressed Air
6 kg/cm

Door Type
Horizontal sliding, pneumatic operated

Design Pressure
3.5 bar

Working Pressure
2.0 bar

Design Temperature
140C

Heat Uniform
1C

Insulation
Mineral wool, 50 mm thick

Net Weight
Approx. 700 kg

Recording Parameters
Digital display for pressure, temperature, time

Spraying Mode
Uniform multi-directional spray

Outer Trolley
Stainless Steel 304 grade with guide wheels

Inner Trolley
Stainless Steel 304 perforated construction

Spraying Piping
SS 304 seamless pipes, multi-nozzle system

Steam
Saturated steam, 1.5 to 2 bar

Sterilizing Temperature
121C

Working Temperature
Up to 135C

Sterilization Time
15 to 30 minutes

Temperature Scope
110 to 135C

Piping System
Automatic multi-valve system

Valves
Stainless steel control and safety valves

Power Consumption
3 KW

Maintenance
Easy access panels for service

Water Supply
Soft water required, 2 bar pressure

Noise Level
Below 68 dB

Installation
Floor mounted with vibration damping pads

Material of Construction
All contact parts Stainless Steel 304/316

Finish
Mirror polished inner chamber, matt finish outer chamber

Drain System
Automatic and manual drain facility

Control System
PLC based automation

Application
Pharmaceutical, hospital, microbiology labs

Gasket
Silicone high-temperature gasket

Sterilization Output
Up to 10 loads per hour

Safety Features
Automatic pressure and temperature cut-off, emergency stop

Electrical Supply
415V AC, 50 Hz, 3-phase

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in HPH Series High Pressure Sterilizers Category

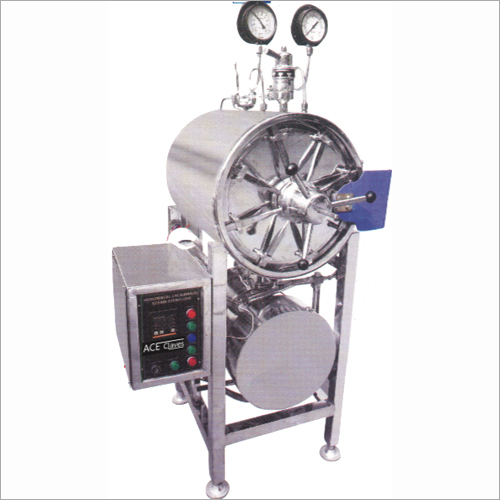

Horizontal High Pressure Sterilizers

Minimum Order Quantity : 1 Piece

Steam : External source, saturated steam

Outer Size : 2000 mm x 900 mm x 1100 mm

Design Temperature : 135C

Spraying Piping : SS316 corrosion resistant

Get a Price/Quote

Double Door Horizontal High Pressure Sterilizers

Price 225000.00 INR

Minimum Order Quantity : 1 Piece

Steam : Saturated steam (external source or builtin boiler)

Outer Size : 1700 x 650 x 900 mm

Design Temperature : 150C

Spraying Piping : 304/316grade stainless steel

Get a Price/Quote

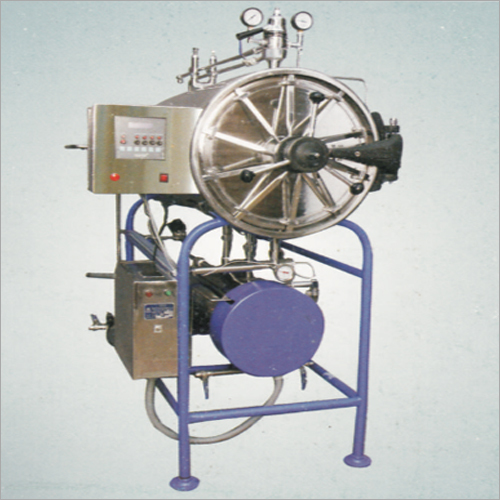

Horizontal High Pressure Sterilizers With PLC Micro Processor Controller

Price 295000 INR / Piece

Minimum Order Quantity : 01 Piece

Steam : 18 kg/h

Outer Size : 600 x 1200 mm

Design Temperature : 135C

Spraying Piping : 304 Stainless Steel

Get a Price/Quote

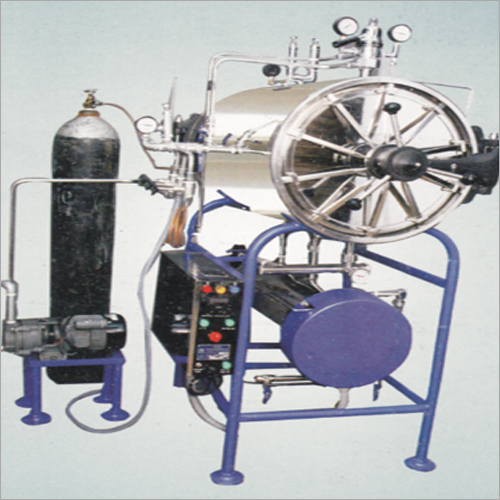

Horizontal High Pressure Steam Cum ETO Sterilizers
