HYDRAULIC OPERATION TABLE

Get a Price/Quote

HYDRAULIC OPERATION TABLE Specification

Height
Min 750mm - Max 1000mm (Hydraulic Adjustable)

Dimension (L*W*H)
2000mm x 600mm x 750-1000mm

Regional Style
Indian

General Use
Hospital Furniture

Specific Usage
Operating Room Procedures

Design
Ergonomic with Smooth Edges

Furniture Type
Hospital Hydraulic Operation Table

Material
Stainless Steel with Cushioned Top

Metals Type
SS304 Grade

Folded
No

Function
Multi-functional Surgical Use

Back Rest Lifting Angle
0 to 80 Adjustable

Size
Standard (approx. 2000mm x 600mm)

Weight
Approx. 110 kg

Maximum Loading
Up to 250 kg

Feature
Height Adjustable, Head & Leg Rest Adjustable, Leakproof Hydraulic System

Accessories
Arm Rest, Anaesthesia Screen, Knee Crutches, Mattress

Reverse Trendelenburg Position
0° to 25°

Hydraulic Pump Type
Foot Operated Oil-Hydraulic Pump

Leg Rest Adjustment
Detachable and Swing Out

Safety Feature
Side Safety Rails

Finish Type
Matte Polished Stainless Steel

Base Type
Heavy Duty Stainless Steel Base with Lockable Casters

Head Rest Adjustment
Manually Operated

Electrical Requirement
Manual Operation, No Electrical Source Needed

Compliance
CE Certified, ISO 9001:2015

Trendelenburg Position
0° to 25°

Surface Material
Anti-bacterial Seamless Upholstery

About HYDRAULIC OPERATION TABLE

HYDRAULIC OPERATION TABLE

'C' Arm Compatible
Code : ACE -2003

Features :

Five section table top gives ease for various surgical positions
Base & column cover are covered with 304 G stainless steel to ensure high durability & hygiene for the operation room
Leg section & Head section interchangeable
Radio-translucent top provides easy convenience for x ray procedures
Interchangeable Head and Leg section

Mechanical Movement :

Flex-Reflex
Lateral tilt
Trendlenburg /Reverse Trendlenburg
Leg rest
Head rest
Kidney bridge
Floor lock
Hi-Lo

Standard Accessories :
A)Five section mattress :- 1 set
B)Anesthetist Screen :- 1 PCS
C)Padded Lateral Support :- 2 PCS
D)Padded Lateral Support :- 2 PCS
E)Padded Lithotomy crutches :- 2 PCS
F)Padded Arm rest :- 2 PCS
G)Drive handle :- 1 PCS

Technical Specification :
A)Overall Length of the table :- 1950mm
B)Overall width of the table :- 530mm
C)Minimum height of the table :- 780mm
D)Maximum height of the table :- 1030mm
E)TB/RTB :- 40 degree
F)Flex/Reflex :- 80/220 degree
G)Side Tilt :- 22 degree
H)Kidney section :- 125 mm manually
I)Leg Plate :- 90 degree Down
J)Hi-Low Lift :- hydraulic
K)Head Section :- 90 degree Down / 70 degree up

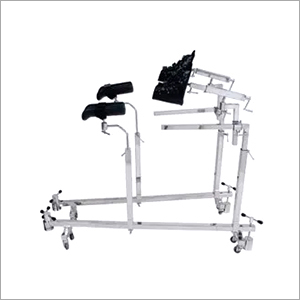

Optional Accessories

Orthopedic Attachment
Neuro Attachment (Mayfield, Sugita, Horse shoe)
Spine Frame attachment
Hand surgery attachment

Robust and Hygienic Design

Built from SS304 matte-polished stainless steel, the table features anti-bacterial, seamless cushioning, ensuring both durability and ease of cleaning. Its ergonomic structure with smooth edges and safety rails enhances operational safety and patient comfort, making it suitable for high-traffic medical environments.

Effortless Hydraulic Adjustments

Utilizing a foot-operated oil-hydraulic pump, the table allows for quick and precise height and tilting adjustments (Trendelenburg and reverse Trendelenburg up to 25). This manual system requires no electrical power, ensuring reliability even during power interruptions and eliminating dependence on external sources.

Versatile Surgical Support

The operation table comes equipped with practical accessoriesdetachable and swing-out leg rests, arm rests, mattress, anaesthesia screen, and knee crutchescatering to a wide range of surgical procedures. An adjustable headrest and backrest provide further flexibility, ensuring optimal patient positioning and comfort.

FAQs of HYDRAULIC OPERATION TABLE:

Q: How does the hydraulic operation table adjust its height and position?

A: The table uses a foot-operated oil-hydraulic pump system, which allows users to smoothly adjust the height between 750mm to 1000mm. Additionally, it provides Trendelenburg and reverse Trendelenburg positioning from 0 to 25, and the backrest can be lifted from 0 to 80, all without the need for electricity.

Q: What benefits does the anti-bacterial seamless upholstery offer?

A: The anti-bacterial seamless upholstery prevents the accumulation and spread of pathogens, promoting a safer, cleaner environment in the operating room. Its seamless design also makes cleaning and disinfection easier and more effective.

Q: When should the side safety rails be used on this operation table?

A: Side safety rails should be engaged whenever a patient is on the table to enhance safety and prevent accidental falls during movement or adjustment of table positions. They can be adjusted as needed for different procedures.

Q: Where is this hydraulic operation table best utilized?

A: This table is ideally used in hospital operating rooms, surgical centers, and clinics across India, providing reliable support for a variety of surgical procedures thanks to its multi-functional design and compliance with CE and ISO 9001:2015 standards.

Q: What is the process for adjusting the leg rest and head rest?

A: The head rest adjustment is operated manually for precise positioning, while the leg rest is detachable and can swing out for improved access during procedures. Both can be configured quickly as per surgical and patient requirements.

Q: How does the heavy duty stainless steel base and lockable casters benefit usage?

A: The stainless steel base offers superior durability and weight capacity, supporting up to 250 kg, while the lockable casters allow for easy movement and secure placement, preventing any accidental shifting during critical procedures.
