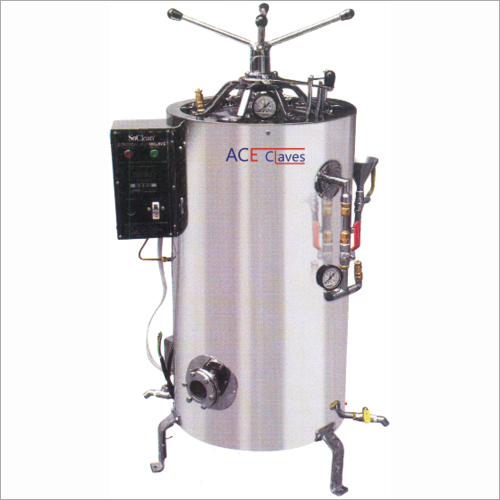

Vertical High Pressure Sterilizers

Horizontal High Pressure Steam Cum ETO Sterilizers Price : 395000 INR/Piece Minimum Order Quantity : 01 Sterilization Time : 3060 minutes Steam : Dry Saturated Steam Chamber Size : 450 x 750 mm Heat Uniform : Even Heat Distribution Design Temperature : 150C Outer Size : 700 x 1000 mm Sterilizing Temperature : 121134C Design Pressure : 10 bar Valves : HighGrade Brass Valves Net Weight : 280 kg Working Temperature : 121C Inner Trolley : Stainless Steel Trolley Outer Trolley : Ergonomic Outer Trolley Recording Parameters : Temperature and Pressure Recorder Type : Other, Horizontal Sterilizer Door Type : Radial Lock Door Spraying Mode : Automatic Spraying System Working Pressure : 23 bar Temperature Scope : Ambient to 134C Compressed Air : 68 bar Power Consumption : 3 kW Insulation : HighGrade Insulation Material Chamber Thickness : 5 mm Piping System : Stainless Steel Piping Spraying Piping : Durable Stainless Steel Piping

Horizontal High Pressure Sterlizers Price : 220000 INR/Piece Minimum Order Quantity : 01 Sterilization Time : 30 to 60 minutes Steam : Required (external source) Chamber Size : 500mm x 500mm x 1000mm Heat Uniform : Uniform heating via steam Design Temperature : 150C Outer Size : 700mm x 700mm x 1300mm Sterilizing Temperature : 121C to 134C Design Pressure : 2.5 MPa Valves : Safety and control valves included Net Weight : 250 kg Working Temperature : 120C Inner Trolley : Available for loading trays Outer Trolley : Stainless steel trolley Recording Parameters : Pressure and Temperature Type : Other, Horizontal High Pressure Sterilizer Door Type : Radial Locking Door Spraying Mode : Steam spraying Working Pressure : 2 MPa Temperature Scope : 0C to 150C Compressed Air : Required for pneumatic controls Power Consumption : 5 kW/h Insulation : Highquality thermal insulation Chamber Thickness : 5mm Piping System : 316L Stainless Steel Spraying Piping : Anticorrosive stainless steel

Horizontal High Pressure Sterilizers With PLC Micro Processor Controller Price : 295000 INR/Piece Minimum Order Quantity : 01 Sterilization Time : 30 minutes Steam : 18 kg/h Chamber Size : 450 x 900 mm Heat Uniform : 1C Design Temperature : 135C Outer Size : 600 x 1200 mm Sterilizing Temperature : 121C Design Pressure : 3 bar Valves : 304 Stainless Steel Net Weight : 300 kg Working Temperature : 121C Inner Trolley : 304 Stainless Steel Outer Trolley : 304 Stainless Steel Recording Parameters : PLC Microprocessor Control Type : Other, Horizontal High Pressure Sterilizer Door Type : Automatic Sliding Door Spraying Mode : Automatic Spraying Working Pressure : 2 bar Temperature Scope : 121C 135C Compressed Air : 68 bar Power Consumption : 5 kW Insulation : Double Layer Insulation Chamber Thickness : 4 mm Piping System : SS 304 Grade Piping Spraying Piping : 304 Stainless Steel

Horizontal High Pressure Sterilizers Minimum Order Quantity : 1
