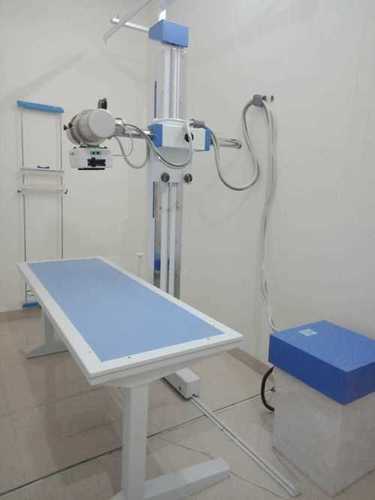

300mA Horizontal X-Ray Unit

Get a Price/Quote

300mA Horizontal X-Ray Unit Specification

Material
Powder coated steel, lead shielding

Condition
New

Technology
Horizontal X-ray imaging with high-frequency technology

Portable
Yes, mounted on wheels

Light Source
Not Applicable (uses X-Ray tube)

Operating Temperature
10C to 40C

Humidity %
75%

Sensors Specification
Compatible with conventional and digital X-ray film/sensors

Indicator Specification
Analog and digital exposure indicators

Speed Range
Fixed operation (not variable speed)

Ray Frequency Range
50 - 100 kHz (high frequency)

Exposure Time Range (in Sec)
0.02 - 4.0 Sec

Focus
2 mm 2 mm

Image System
Film-based or digital system

Usage
Medical, Radiographic diagnosis

Power Source
Electric, AC Supply

Power Consumption
3.5 kW approx.

Working Voltage
220V / 50Hz AC

Dimension (L*W*H)
1600 mm x 700 mm x 1700 mm

Weight
Approx. 120 kg

Application Area
Hospitals, clinics, diagnostic centers

Maximum Output
36 kW

X-Ray Tube Current
300 mA (max)

X-Ray Tube Voltage
40-125 kV (adjustable)

Focal Spot Size
2.0 mm

Control Panel
Programmable, with digital display

Arm Movement
Horizontal movement with adjustable height

Mobility
Four-caster wheel base with locking system

Cooling System
Oil cooled

Safety Features
Over-temperature protection, automatic shut-off

About 300mA Horizontal X-Ray Unit

We have gained immense admiration from our respected clients for supplying premium quality 300mA Horizontal X-Ray Unit. Our product is a portable horizontal unit used for creating high-quality x-ray images. It comes with a sophisticated control panel with digital display for all radiographic parameters. We have provided automatic tube overload protection and voltage compensator in our product. It comes with a rotating type anode with a large heat capacity. 300mA Horizontal X-Ray Unit is fully counterbalanced and strong body.

Features:

Light beam diaphragm collimator
Efficient X-ray protection barrier
Easy to move and handle

Reliable Medical Imaging Performance

This X-ray unit offers exceptional imaging clarity with a 2.0 mm focal spot and high-frequency technology. Its adjustable tube voltage and current accommodate a wide range of diagnostic requirements, making it suitable for various radiographic procedures in medical settings. Its film-based and digital sensor compatibility supports both conventional and modern workflows.

Enhanced Safety and User Convenience

Equipped with over-temperature protection and automatic shut-off, the unit prioritizes patient and operator safety. The programmable control panel with digital display facilitates quick settings adjustments, while the four-caster wheel mobility ensures effortless positioning and secure placement in different clinical environments.

Flexible Operation in Demanding Environments

Designed to operate within a humidity of 75% and temperatures from 10C to 40C, the unit performs reliably across diverse clinical locations. Its sturdy build and lead shielding provide additional peace of mind in routine high-frequency diagnostic operations.

FAQs of 300mA Horizontal X-Ray Unit:

Q: How does the 300mA Horizontal X-Ray Unit improve radiographic diagnosis?

A: The unit delivers consistent, high-quality images through adjustable tube voltage and current settings, enabling precise examinations. Its high-frequency technology and optimal focal spot size further enhance image clarity for accurate diagnosis.

Q: What safety features are included in this X-ray unit for operator and patient protection?

A: It features over-temperature protection, automatic shut-off mechanisms, and durable lead shielding, all designed to reduce risks associated with X-ray exposure and equipment overheating.

Q: When is this X-ray unit most effectively used in medical practice?

A: This device is ideal for routine radiographic examinations in hospitals, clinics, and diagnostic centers, where both conventional film-based and digital imaging workflows are employed for efficient patient assessment.

Q: Where can the 300mA Horizontal X-Ray Unit be deployed within healthcare facilities?

A: Due to its four-caster wheel base, the unit can be conveniently moved and locked in place in diagnostic rooms, emergency areas, and outpatient clinics, adapting to various spatial requirements.

Q: What is the process for adjusting exposure and imaging settings?

A: The programmable control panel with a digital display allows users to set tube voltage, current, and exposure time within specified ranges. Analog and digital indicators provide feedback on exposure cycles during operation.

Q: How does the mobility feature benefit the daily workflow?

A: The portable design with locking caster wheels enables easy transportation and secure positioning for dynamic radiography needs, improving efficiency and flexibility in busy clinical environments.
