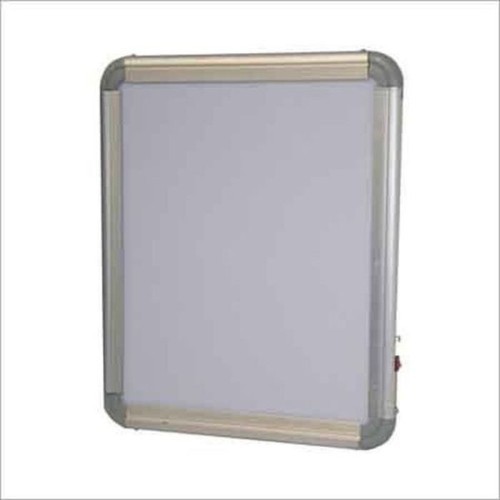

LED X-Ray View Box

Get a Price/Quote

LED X-Ray View Box Specification

Material
Aluminum Alloy frame with Acrylic Sheet

Condition
New

Technology
LED Backlit Technology

Portable
Yes

Light Source
High-intensity Energy Efficient LED

Operating Temperature
0C to 50C

Humidity %
Up to 95%

Sensors Specification
Film Sensor for automatic ON/OFF available

Indicator Specification
LED Power Indicator

Darkness Range
High visibility, <15 cd/m darkness

Speed Range
Instant ON; No warm-up time

Focus
Uniform light distribution across the panel

Image System
Manual Film Loading

Usage
For viewing X-Ray films in hospitals, clinics, diagnostic centers

Power Source
AC Mains, 110V-240V

Power Consumption
<20W per panel

Working Voltage
110V-240V AC

Dimension (L*W*H)
Standard panel: approx. 480 520 30 mm

Weight
Approx. 2-4 kg per panel

Color Temperature
Approx. 7000K

Viewing Area
410 mm x 410 mm (single screen)

Anti-Rust Feature
Corrosion-resistant frame

Mounting Type
Wall Mount & Table Top Supported

Viewing Method
Clips for easy film placement and adjustment

Screen Type
Single / Double / Triple / Four Screens Available

Switch Type
Soft touch or rocker switch

Frame Thickness
Ultra-slim profile (30 mm approx.)

Brightness Control
Stepless dimmer switch

About LED X-Ray View Box

Product Description

Specification:

Prices with Dimmer Control Function:

Model	Viewing Area (H X W in mm)	Housing Size (H X W X D in mm)
Single Panel/Film	440X360	516X385X38
Double Panel/Film	440X725	516X750X38
Triple Panel/Film	440X1090	516X1116X38
Four Panel/Film	440X1090	516X1116X38

Innovative Design for Medical Professionals

The LED X-Ray View Box features an ultra-slim 30 mm frame, offering a sleek look and easy portability. Its corrosion-resistant construction ensures durability even in high-humidity environments. Equipped with wall mount and table top support, this versatile device suits a range of clinical settings, optimizing space and usability.

Advanced Viewing Technology

Benefit from instant-on high-intensity LED backlighting and uniform light distribution. The stepless dimmer switch enables precise brightness control, while the large 410 mm x 410 mm viewing area fits most films. Easy-to-use clips streamline film placement and adjustment, making film analysis more efficient and accurate.

Energy-Efficient & User-Friendly Operation

With energy consumption under 20W per panel and a wide operating voltage (110240V), this view box is cost-effective and reliable. Automatic film sensors and soft touch controls enhance convenience, ensuring seamless workflow and improved patient outcomes in any healthcare environment.

FAQs of LED X-Ray View Box:

Q: How does the LED X-Ray View Box ensure uniform light distribution for film analysis?

A: This view box uses high-intensity, energy-efficient LED backlit technology, delivering even brightness across the entire viewing area. The stepless dimmer switch allows users to adjust brightness to their preference, ensuring clear visibility for precise examination of X-Ray films.

Q: What are the mounting and installation options for this view box?

A: The LED X-Ray View Box supports both wall mount and table top installations. Its ultra-slim and lightweight design (approximately 2-4 kg per panel) makes it easy to transport and set up in different medical environments such as hospitals, clinics, and diagnostic centers.

Q: When should I use the automatic film sensor feature?

A: The automatic film sensor is beneficial when efficiency is key. It detects film placement and powers the view box on or off, reducing manual intervention and saving energy. This feature is particularly useful during high-volume workflow situations in busy healthcare settings.

Q: Where can this LED X-Ray View Box be utilized within a healthcare facility?

A: Its versatile design allows it to be used in radiology departments, wards, diagnostic centers, and private clinicsessentially any location where X-Ray films need to be analyzed. The anti-rust aluminum frame and wide operating temperature range add to its suitability for diverse facility environments.

Q: What is the process for adjusting film placement and viewing films on this unit?

A: Simply secure the X-Ray film using the provided easy-to-use clips. You can then adjust the brightness with the stepless dimmer switch to achieve optimal clarity. The uniform LED lighting facilitates clear, detailed viewing, helping medical professionals interpret films efficiently.

Q: How does the energy efficiency of this device benefit my facility?

A: With power consumption of under 20W per panel and instant-on operation, the LED X-Ray View Box is highly energy-efficient. This minimizes electricity costs and ensures the unit is always ready for immediate use, contributing to long-term reliability and cost savings.

Q: What makes this view box suitable for harsh operating conditions?

A: Constructed with a corrosion-resistant aluminum alloy frame and capable of withstanding up to 95% humidity and temperatures between 0C and 50C, the view box is built for durability and consistent performance even in challenging environments.
